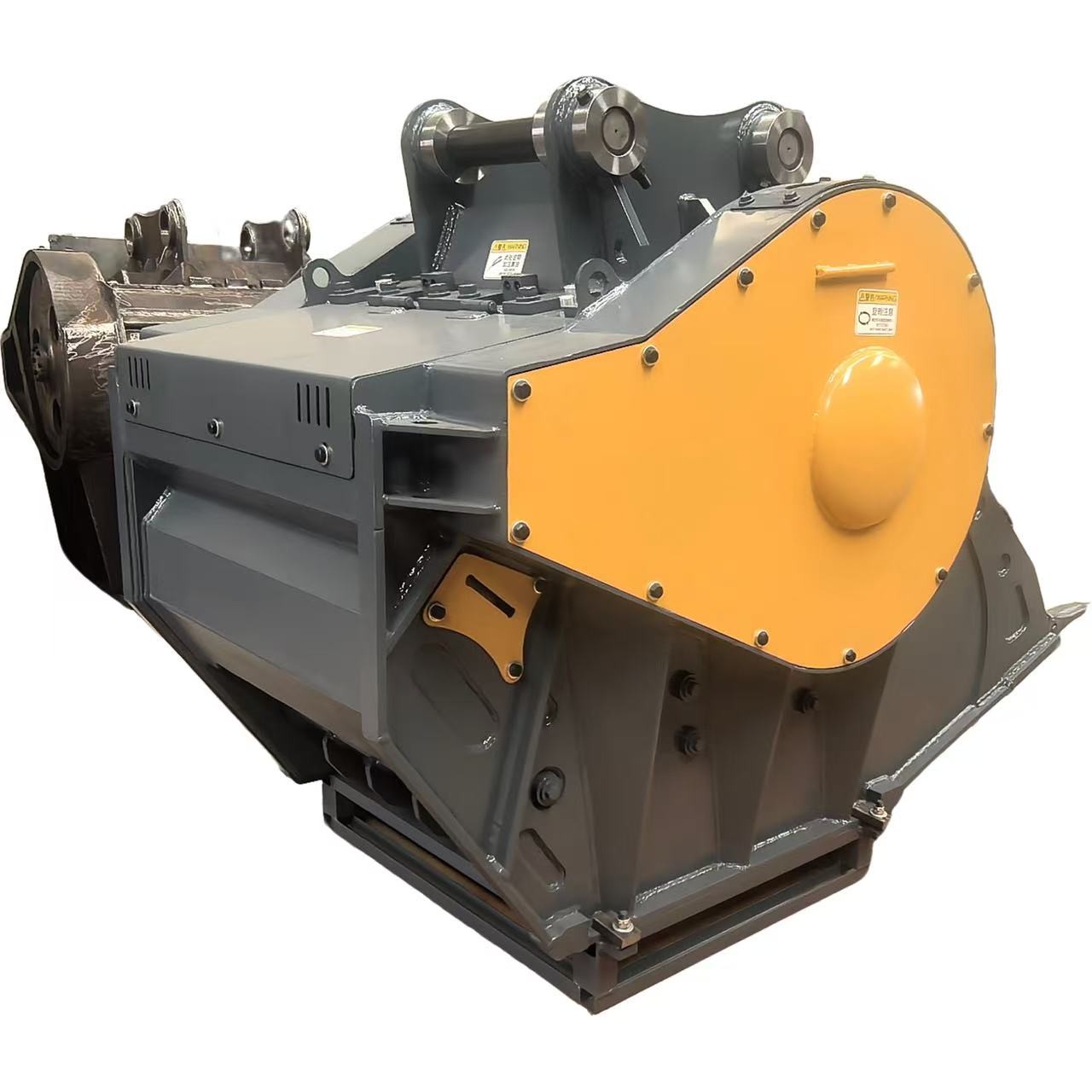

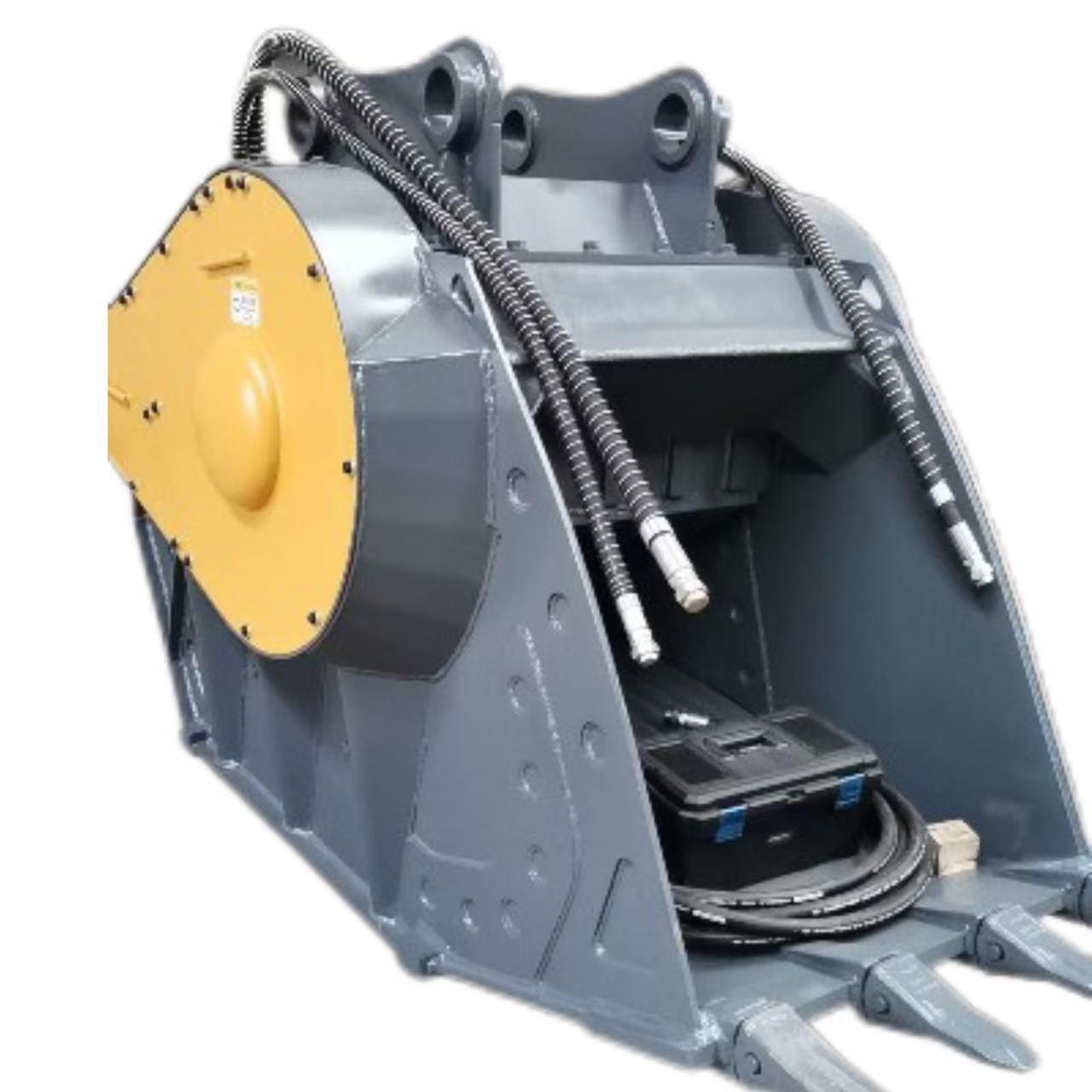

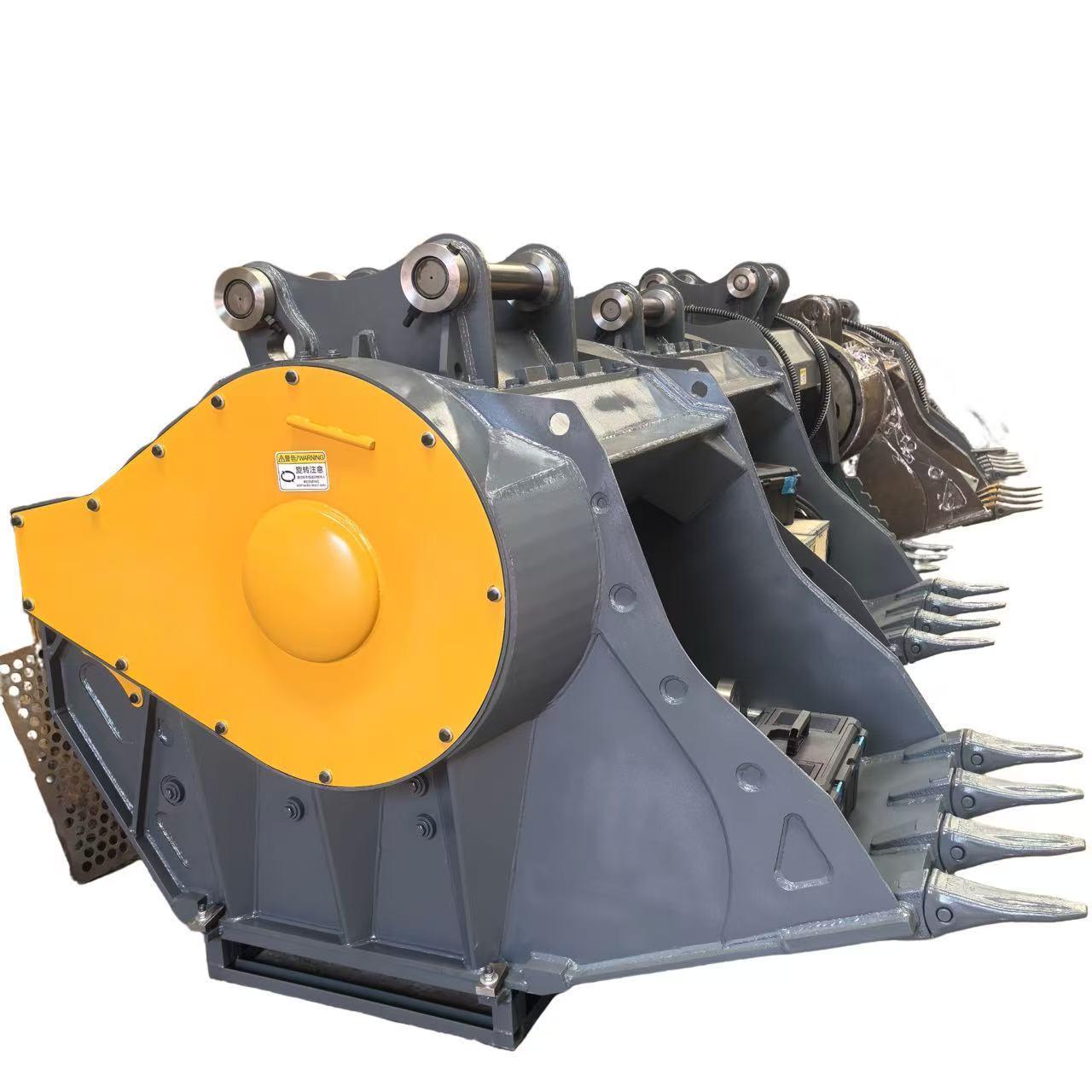

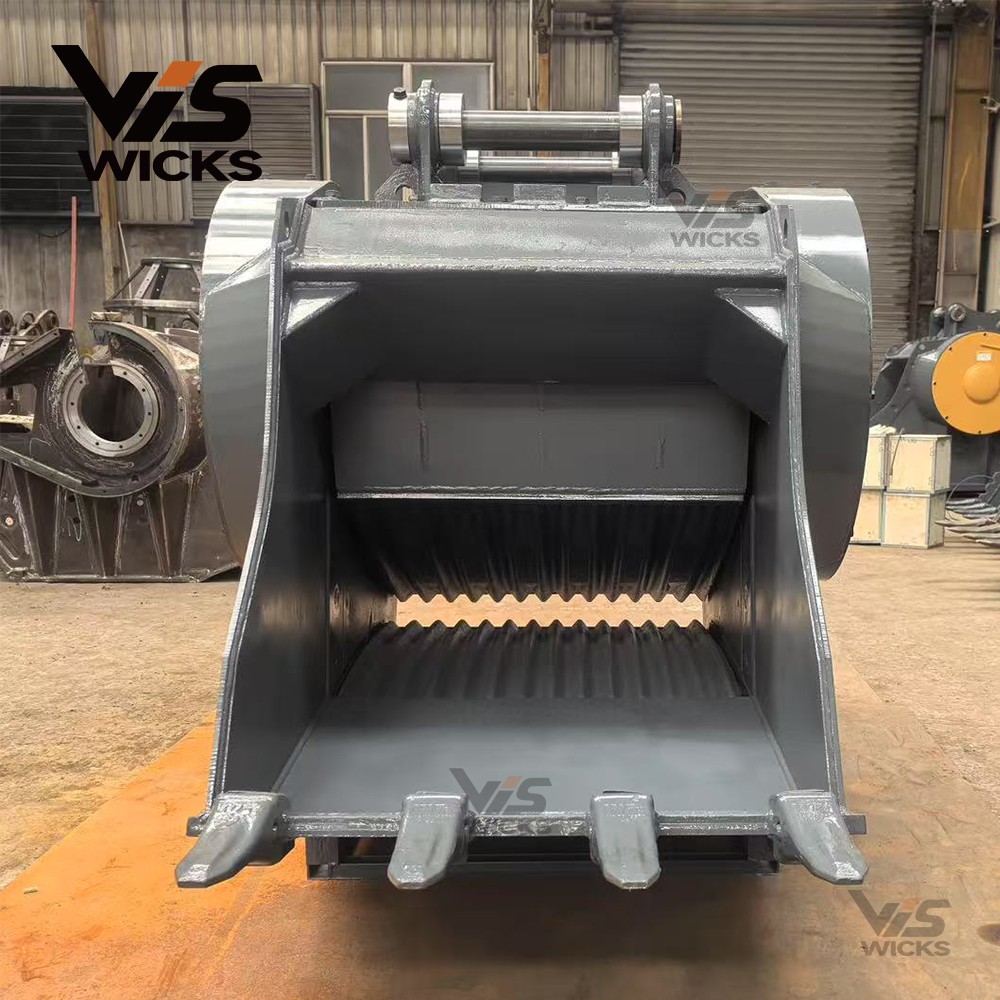

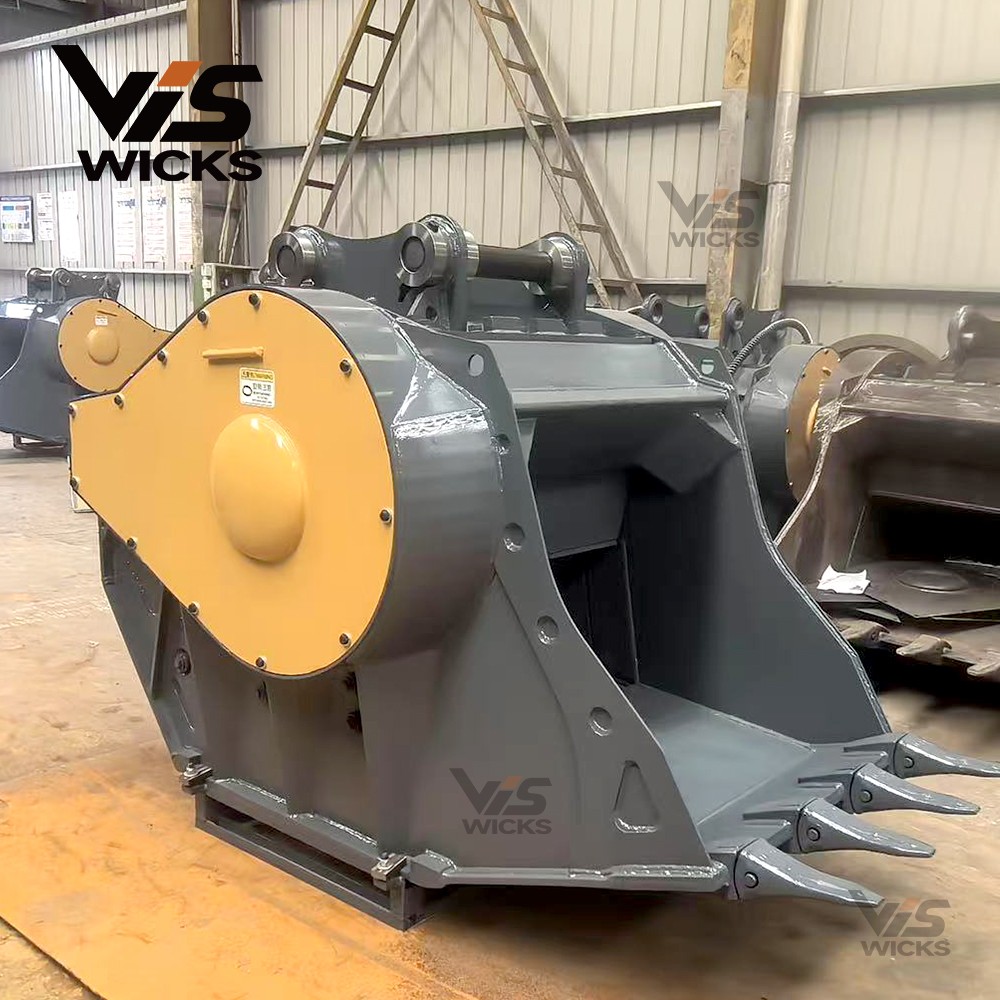

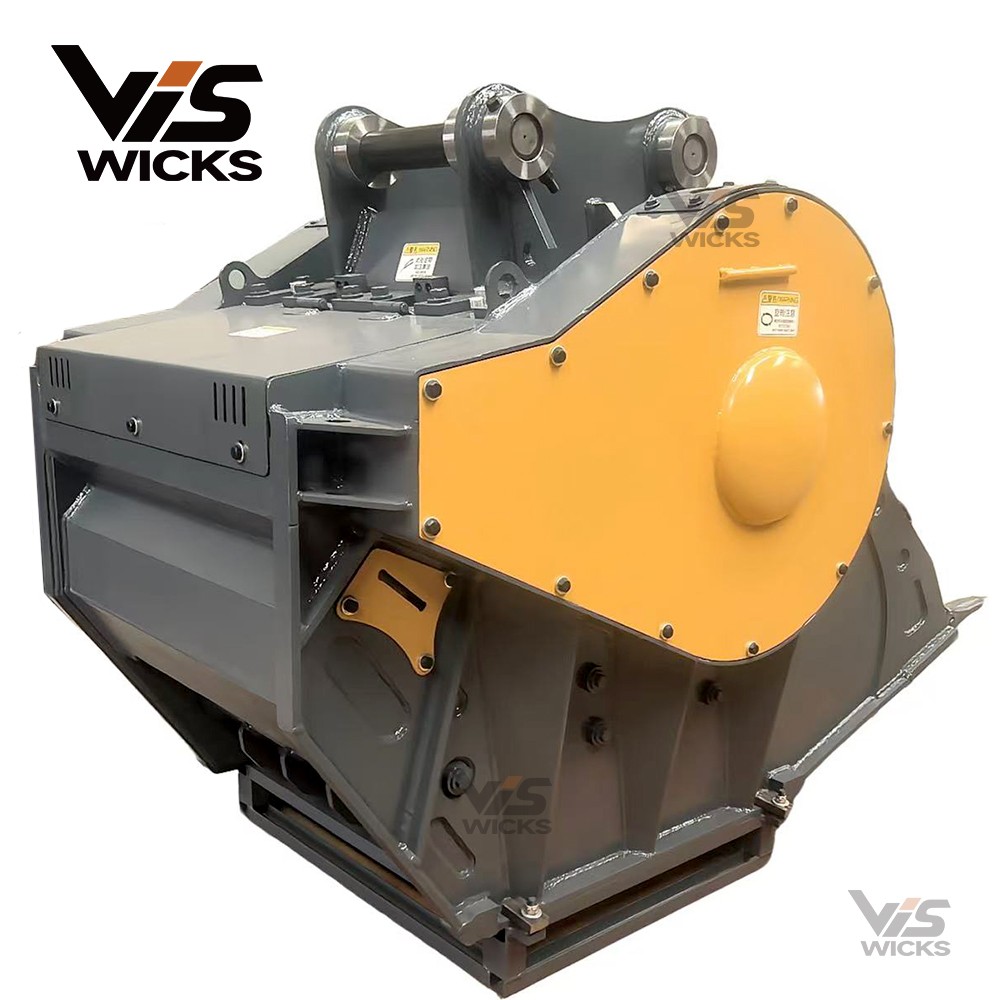

JM-1380 series CRUSHER BUCKET
Particularly suitable for in-site material crushing and recycling operations. Demolition sites, Road construction, Pipeline backfilling, Hydraulic engineering, Mining, Sand production Construction waste, concrete blocks, cobblestones, bluestone, basaltand more
Product description
PRODUCT ADVANTAGE
1.On-site crushing operation elimininate transport costs,unrestricted by terrain.
2.Fit>95% excavators with zero functional interference post-installation.
3.Power System High-RPM,high-pressure plunger motor.
4.High inertia jaw flywheel improves crushing efficiency.

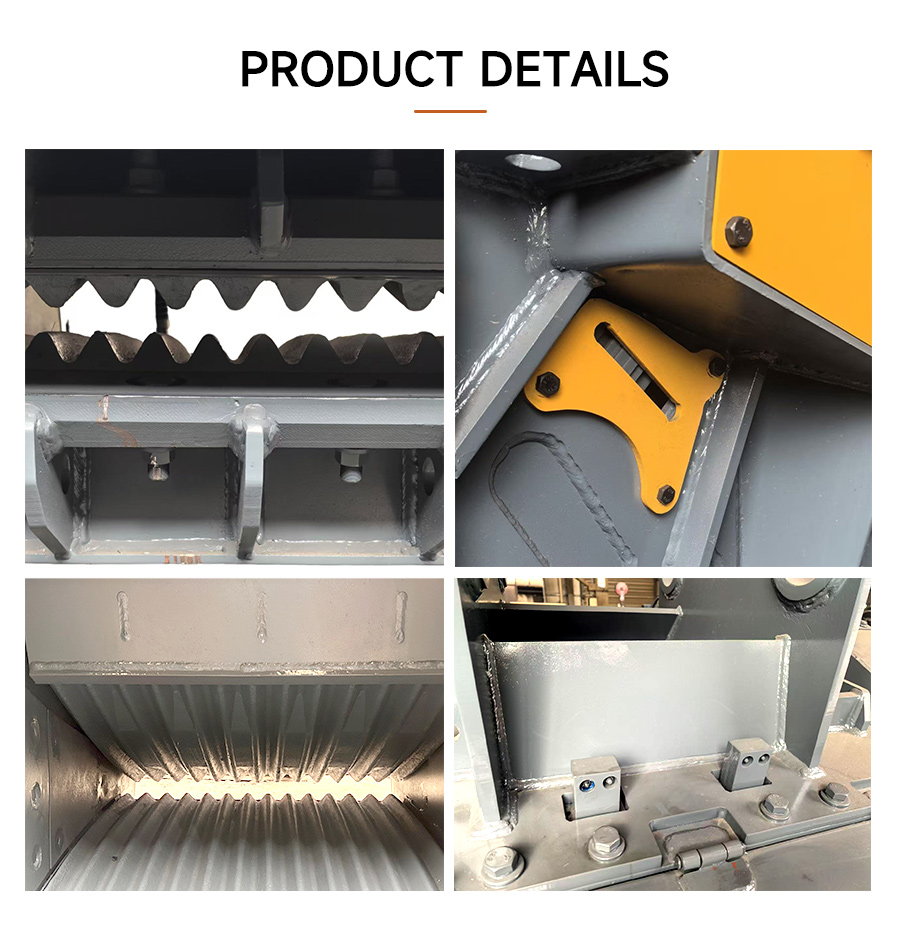

Reversible jaw plates with dual-side utilization triple service life.(Upper/lower interchang+individual can be turned forward and backward)
5.Main frame:hight-strength wear-resistant steel plate.
6.Jaw composition:Mn20Cr2 ultra-wear-resistant cast alloy.
7.Replaceable modular side wear plates,easy maintenance.
8.Output size 15-150mm adjustable
APPLICATION

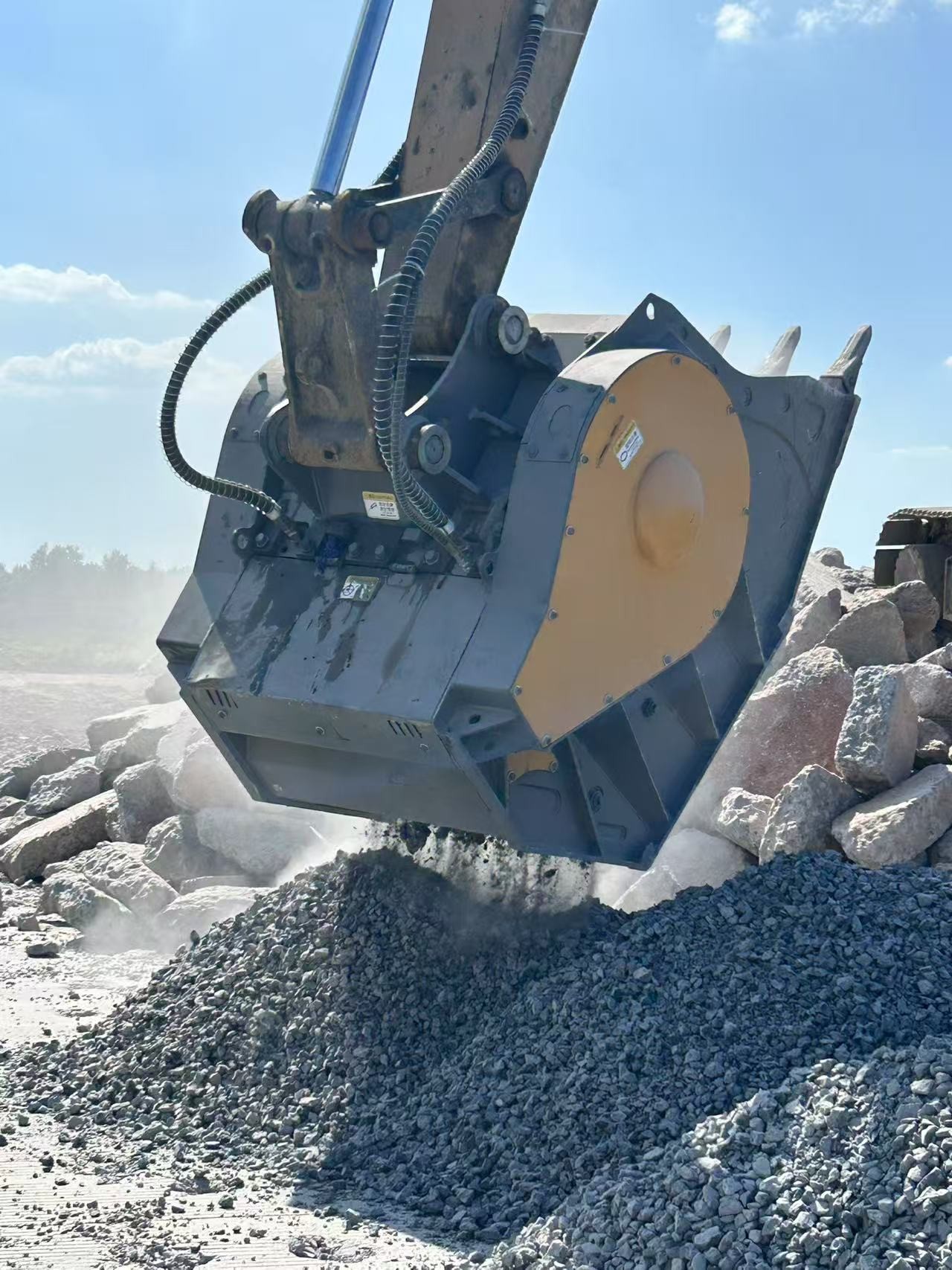

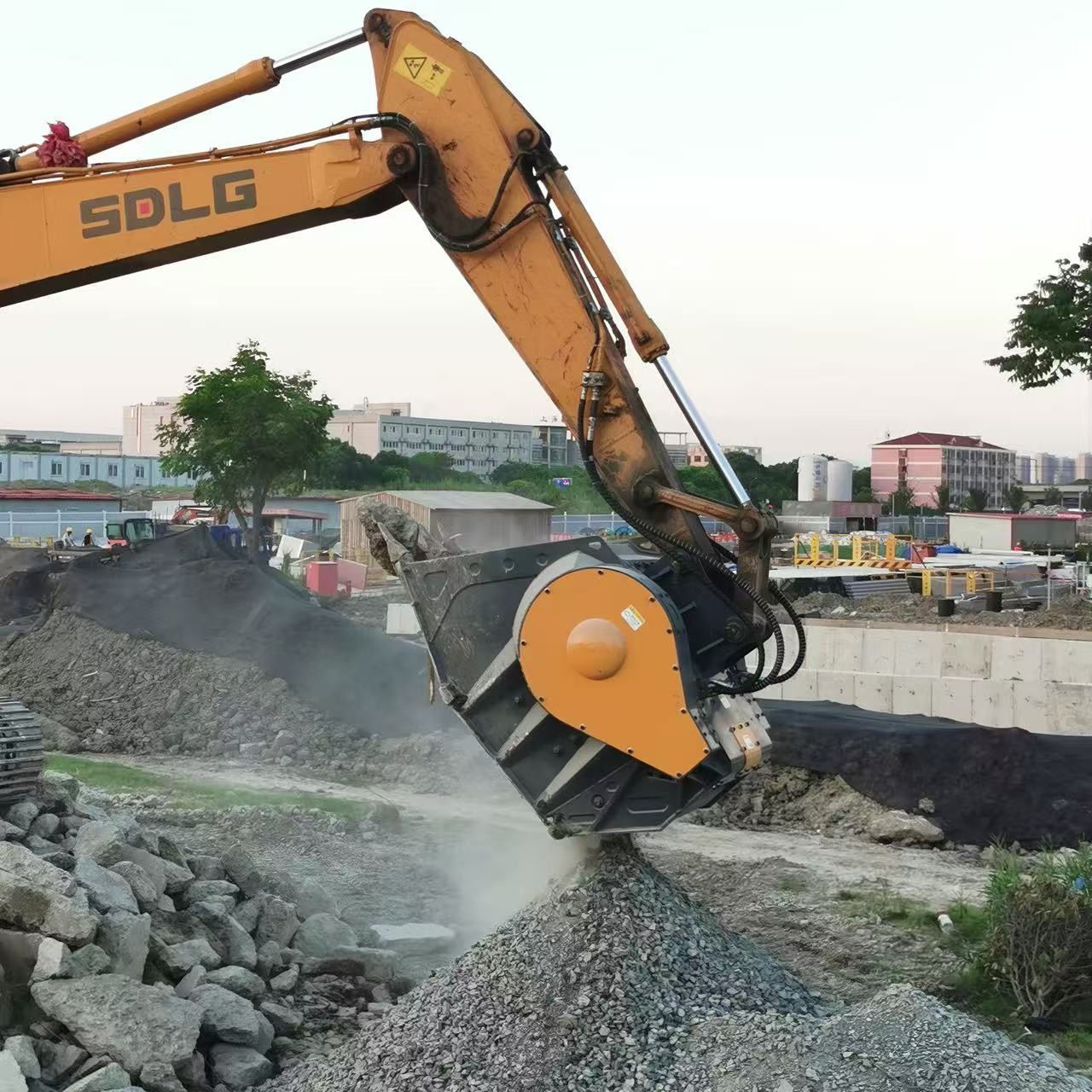

1.Particularly suitable for in-site material crushing and recycling operations.
2.Demolition sites,Road construction, Pipeline backfilling,Hydraulic engineering,Mining,Sand production.
3.Construction waste,concrete blocks,cobblestones,bluestone,basalt,and more.

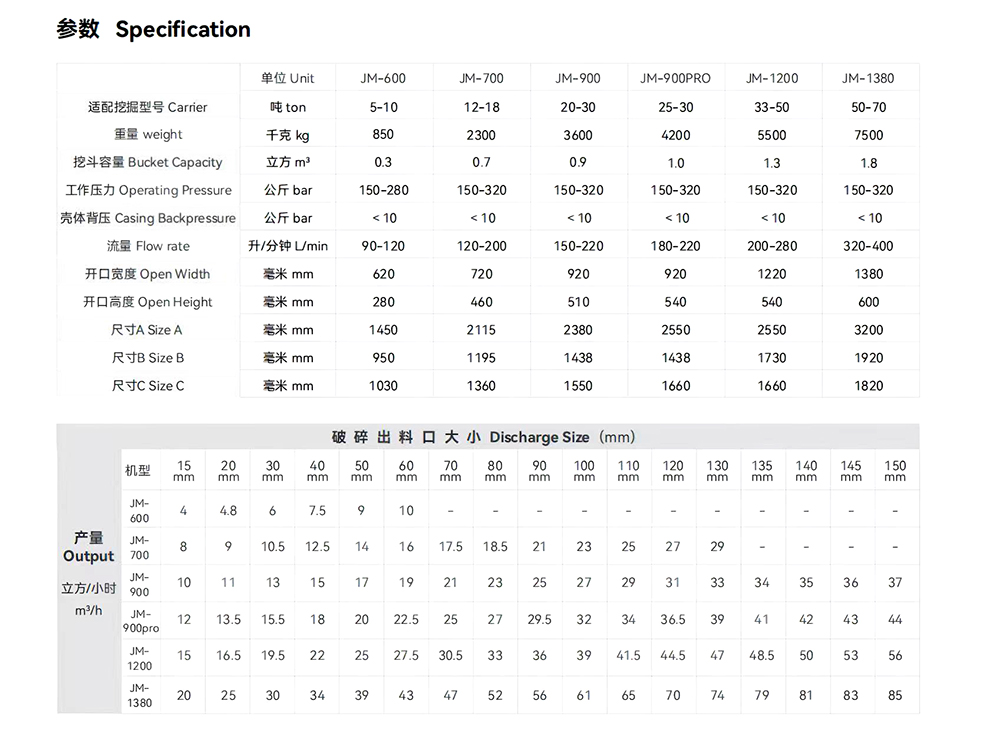

SPECIFICATION

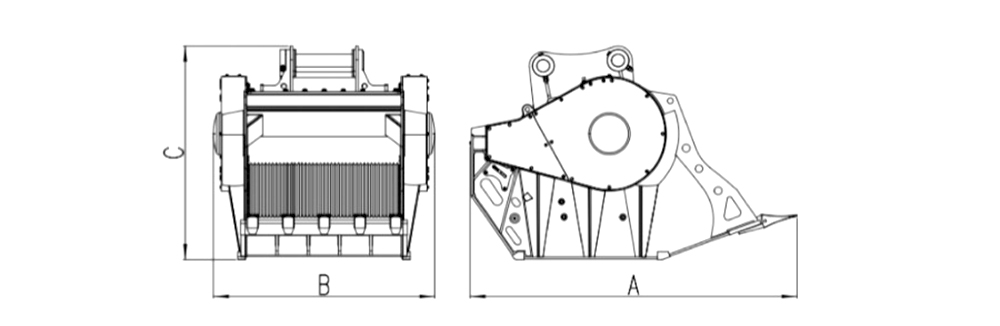

| MODEL | CARRIER | WEIGHT | BUCKET CAPACITY | OPERATING PRESSURE | CASING BACKPRESSURE | FLOW RATE | OPEN WIDTH | OPEN HEIGHT | SIZE A | SIZE B | SIZE C |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JM-1380 | 50-70TON | 7500KG | 1.8m³ | 150-320BAR | <10BAR | 320-400L/MIN | 1380MM | 600MM | 3200MM | 1920MM | 1820MM |
| DISCHARGE SIZE(MM) | 15MM | 20MM | 30MM | 40MM | 50MM | 60MM | 70MM | 80MM | 90MM | 100MM | 110MM | 120MM | 130MM | 135MM | 140MM | 145MM | 150MM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OUTPUT(m³/h) | 20 | 25 | 30 | 34 | 39 | 43 | 47 | 52 | 56 | 61 | 65 | 70 | 74 | 79 | 81 | 83 | 85 |
