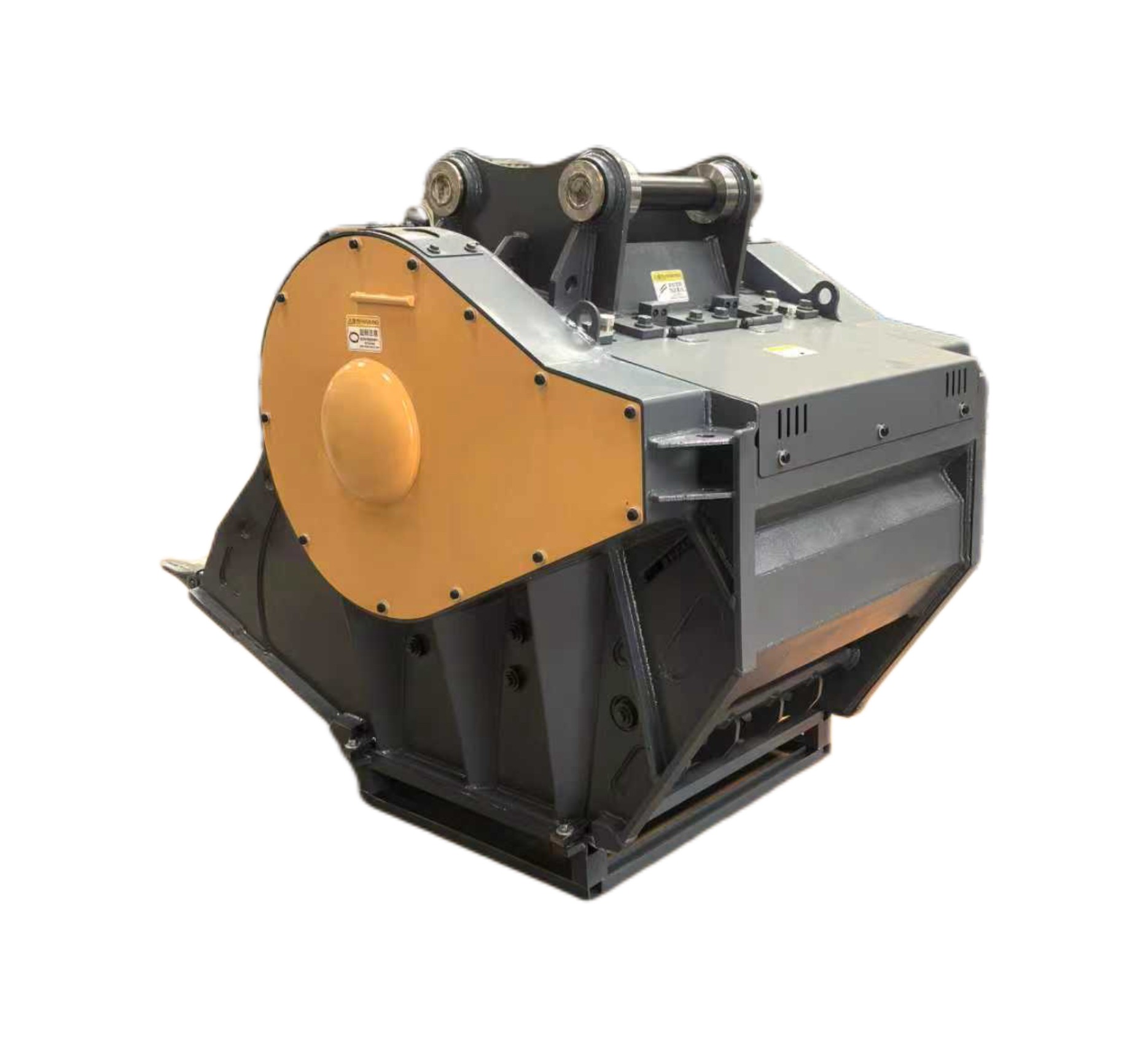

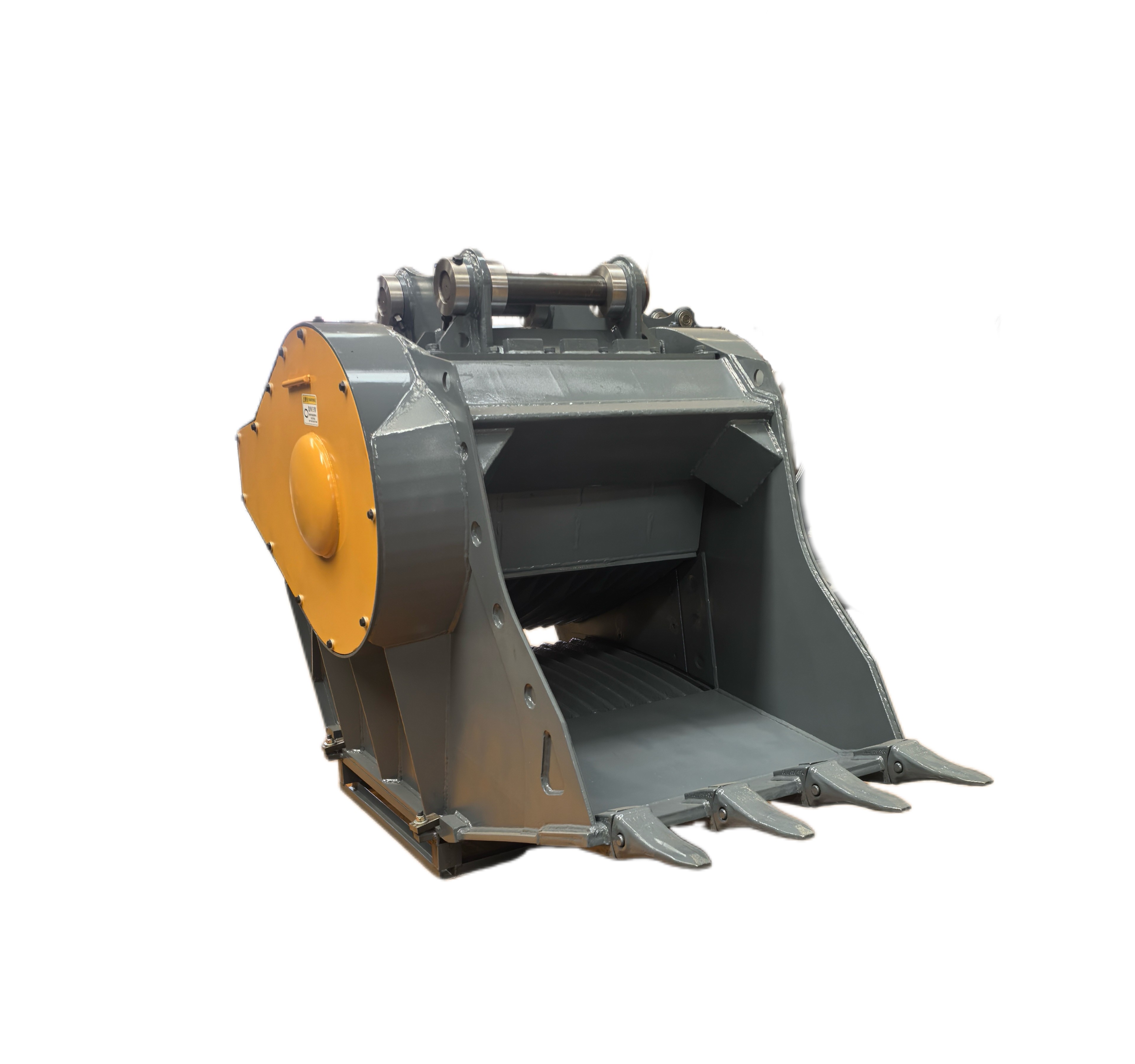

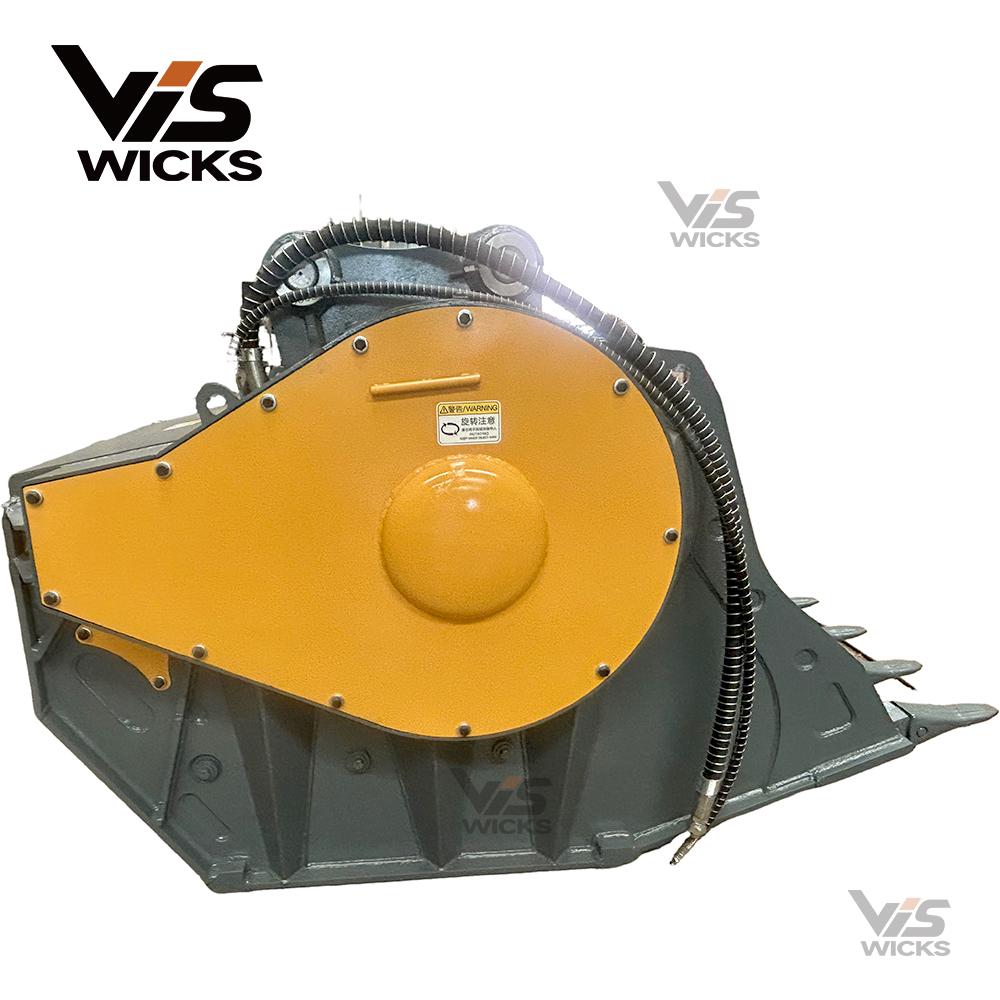

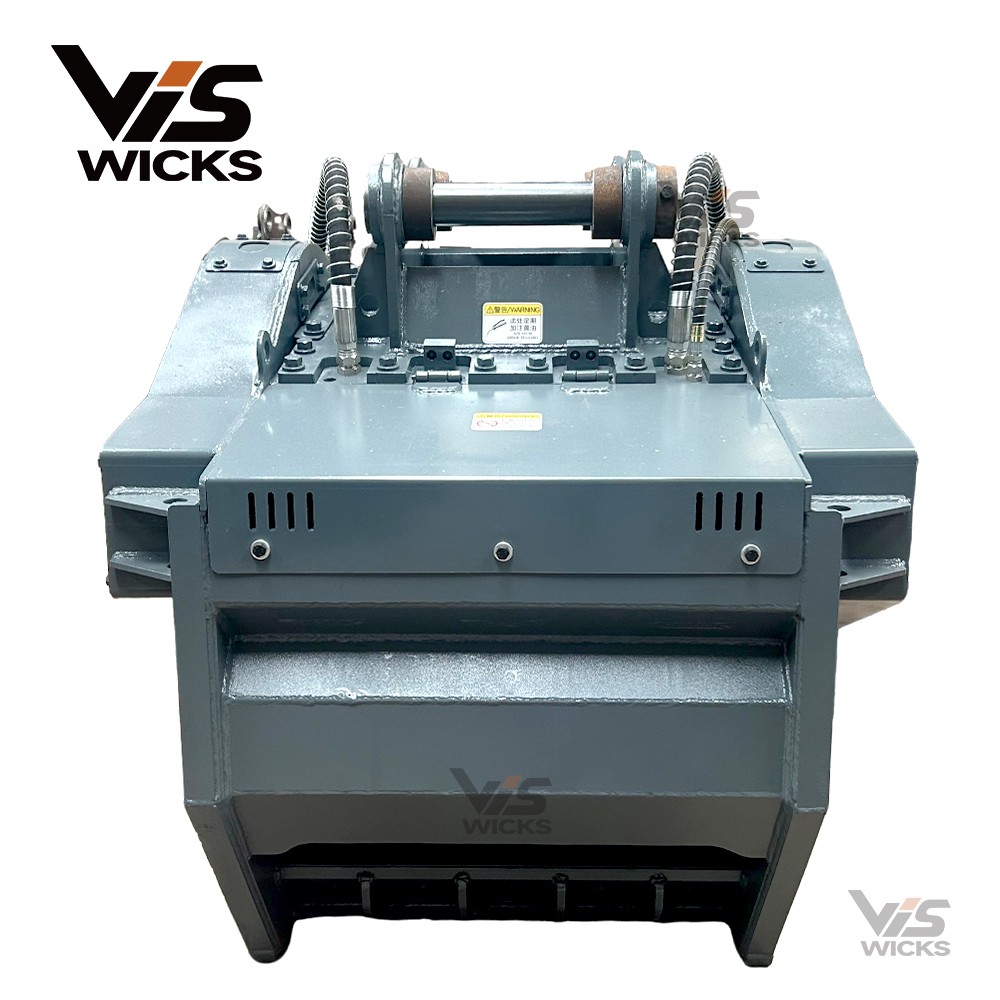

JM-700 series CRUSHER BUCKET
Particularly suitable for in-site material crushing and recycling operations. Demolition sites, Road construction, Pipeline backfilling, Hydraulic engineering, Mining, Sand production Construction waste, concrete blocks, cobblestones, bluestone, basaltand more
Product description
PRODUCT ADVANTAGE

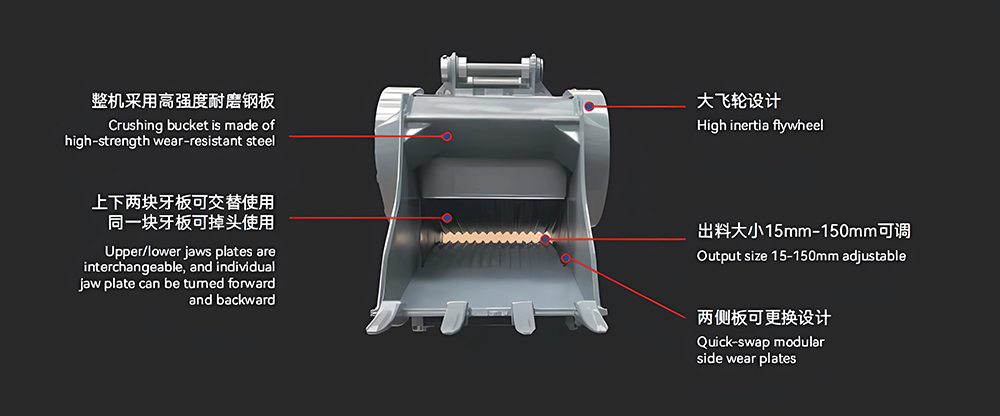

1.On-site crushing operation elimininate transport costs,unrestricted by terrain.
2.Fit>95% excavators with zero functional interference post-installation.
3.Power System High-RPM,high-pressure plunger motor.
4.High inertia jaw flywheel improves crushing efficiency.

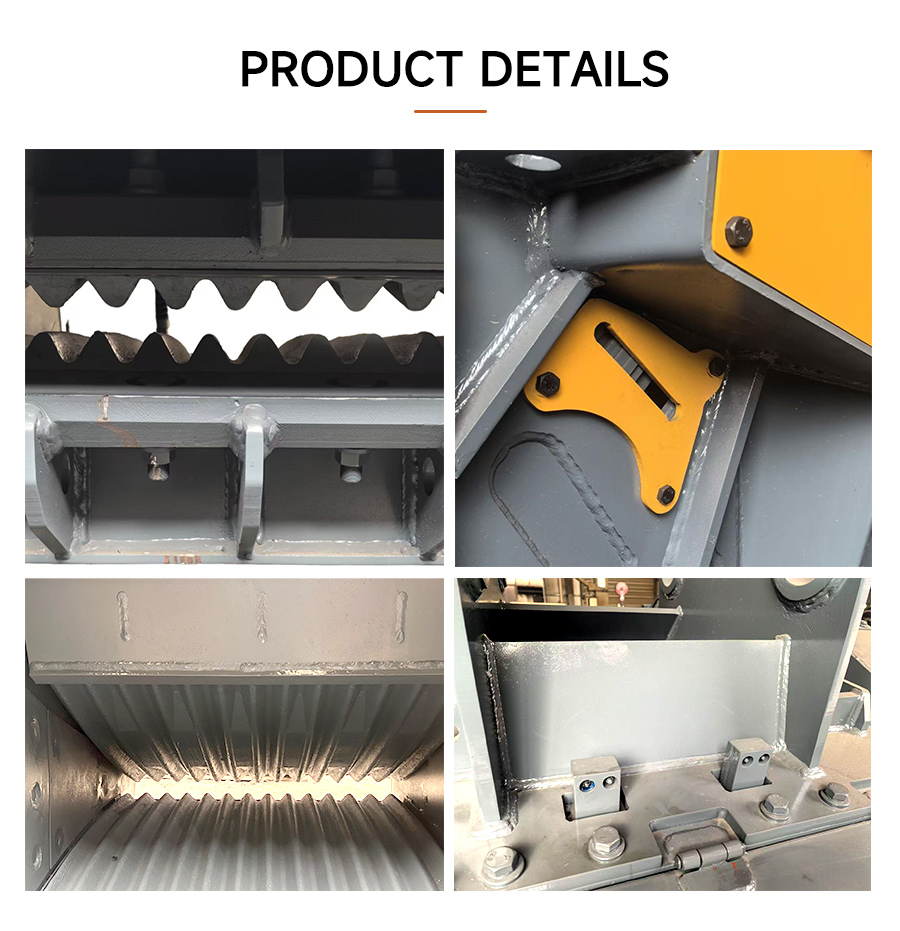

Reversible jaw plates with dual-side utilization triple service life.(Upper/lower interchang+individual can be turned forward and backward)
5.Main frame:hight-strength wear-resistant steel plate.
6.Jaw composition:Mn20Cr2 ultra-wear-resistant cast alloy.
7.Replaceable modular side wear plates,easy maintenance.
8.Output size 15-150mm adjustable
APPLICATION

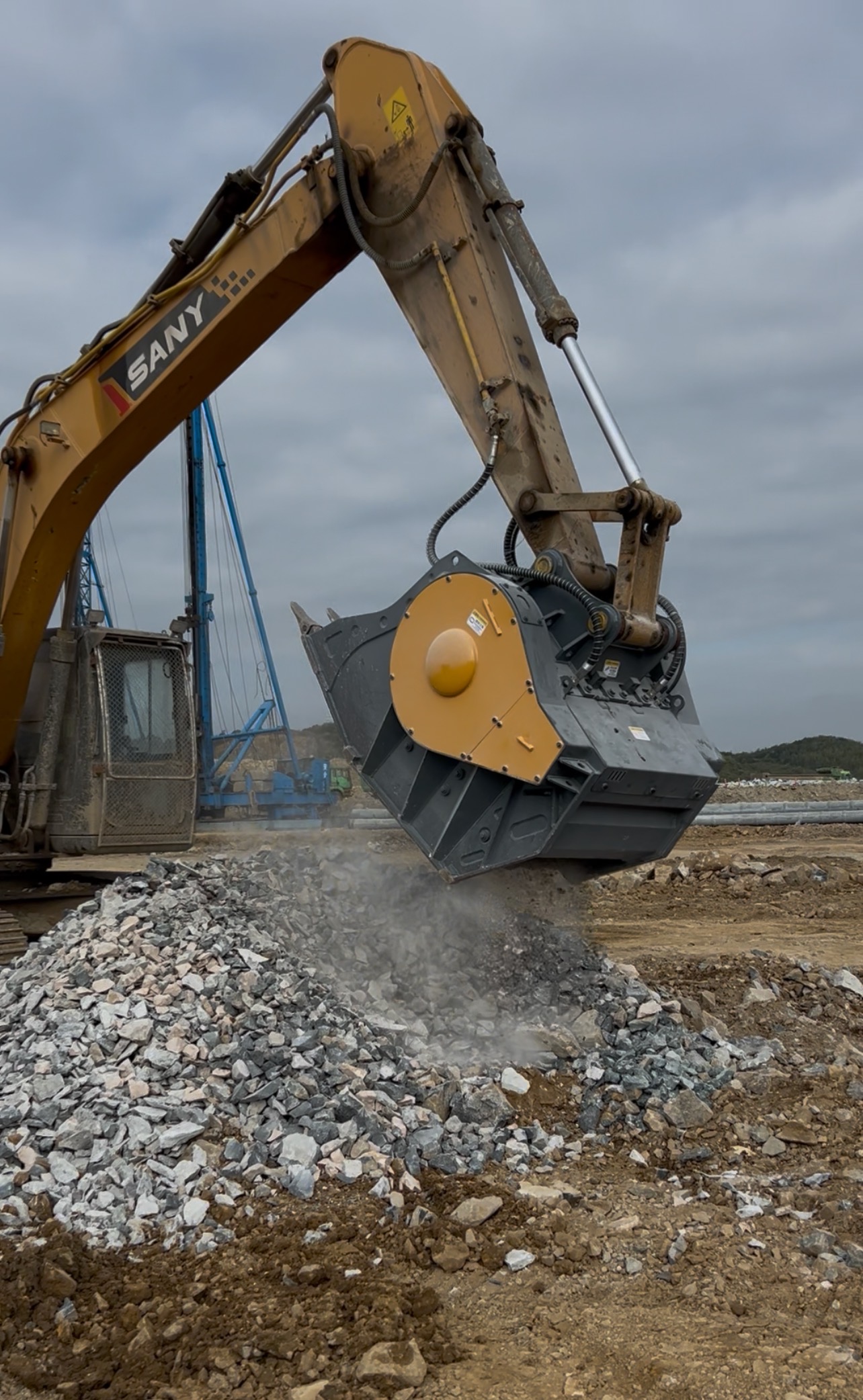

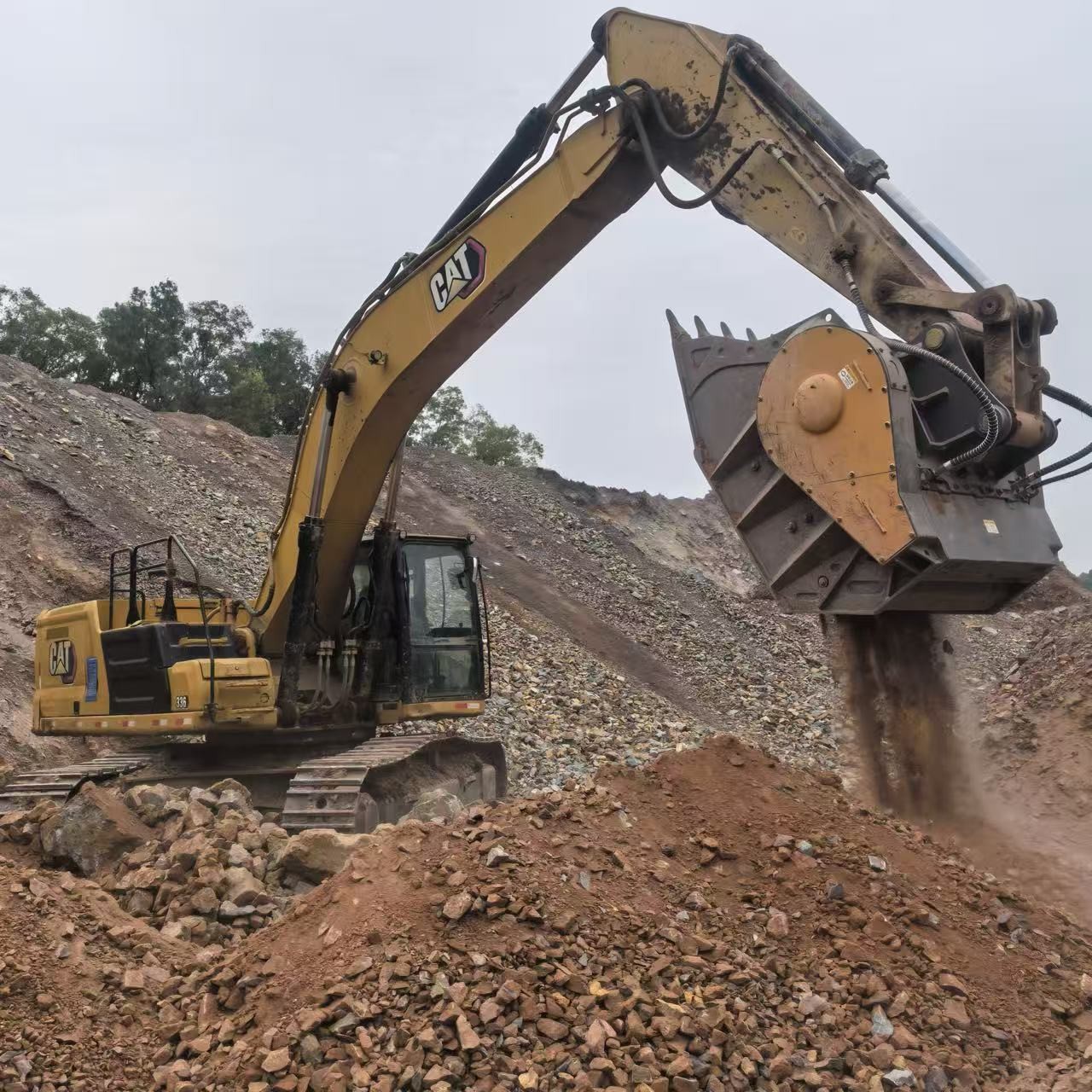

1.Particularly suitable for in-site material crushing and recycling operations.
2.Demolition sites,Road construction, Pipeline backfilling,Hydraulic engineering,Mining,Sand production.
3.Construction waste,concrete blocks,cobblestones,bluestone,basalt,and more.

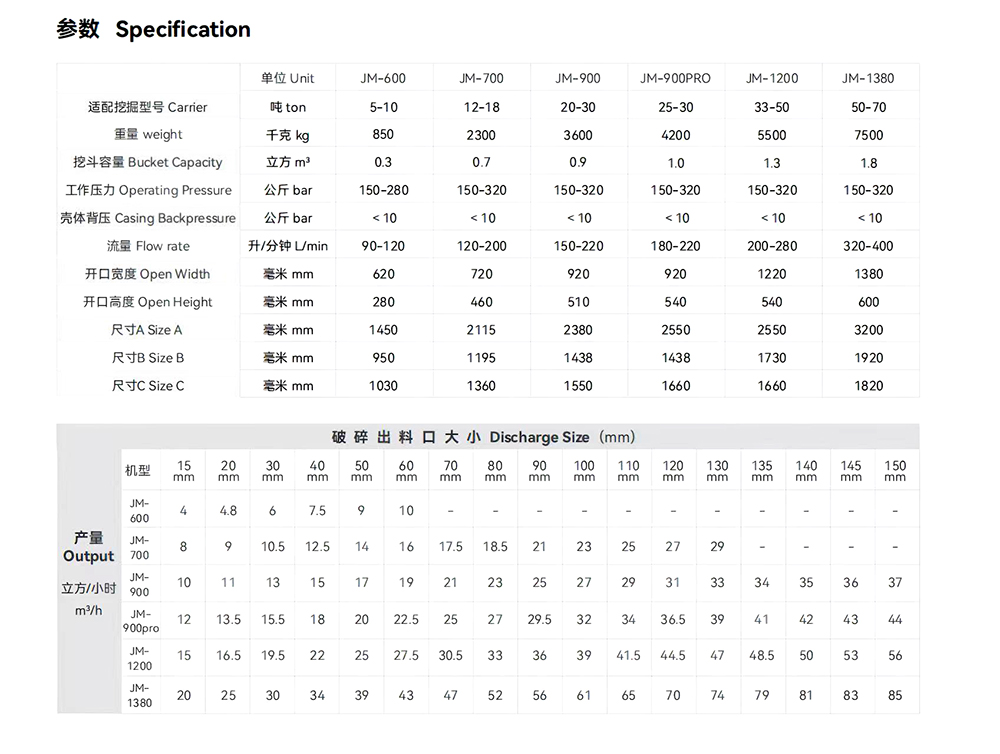

SPECIFICATION

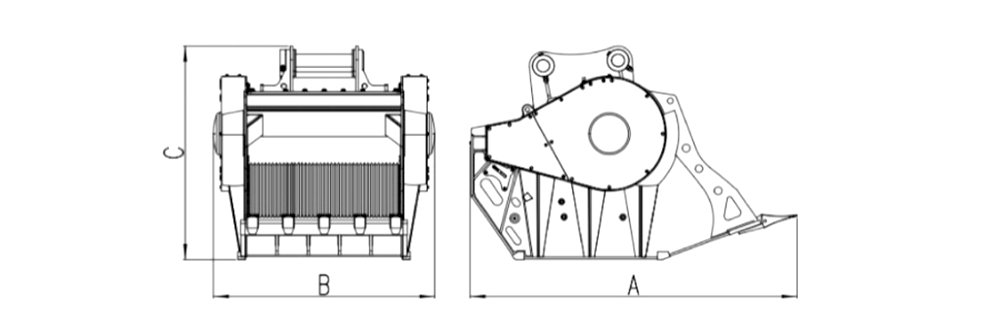

| MODEL | CARRIER | WEIGHT | BUCKET CAPACITY | OPERATING PRESSURE | CASING BACKPRESSURE | FLOW RATE | OPEN WIDTH | OPEN HEIGHT | SIZEA | SIZEB | SIZEC |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JM-700 | 12-18TON | 2400KG | 0.3m³ | 150-320BAR | <10BAR | 120-200L/MIN | 720MM | 460MM | 2160MM | 1450MM | 1430MM |
| DISCHARGE SIZE(MM) | 15MM | 20MM | 30MM | 40MM | 50MM | 60MM | 70MM | 80MM | 90MM | 100MM | 110MM | 120MM | 130MM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OUTPUT （m³/h） | 8 | 9 | 10.5 | 12.5 | 14 | 16 | 17.5 | 18.5 | 21 | 23 | 25 | 27 | 29 |
